110BYG Series Hybrid Stepper Motors

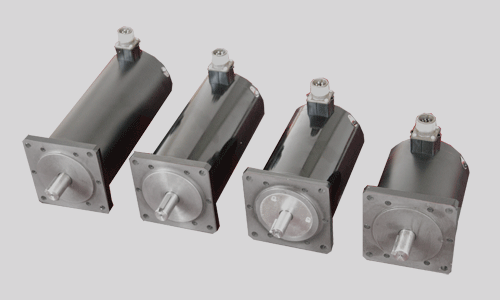

Appearance
|
110BYG Series |
|
|
|
Technical Parameters |
Model
|
Phase |
Current |
R |
L |
Step Angle |
Holding Torque |
Detent Torque |
Inertia |
Weight |
A |
Ω |
mH |
degree |
N.m |
N.m |
Kg.cm^2 |
Kg |
110BYG250 |
2 |
6 |
0.68 |
10 |
0.9/1.8 |
8 |
0.2 |
5 |
6.5 |
110BYG250A |
2 |
6 |
0.72 |
13 |
0.9/1.8 |
12.5 |
0.5 |
8.4 |
9.5 |
110BYG250B |
2 |
6 |
0.8 |
12 |
0.9/1.8 |
18 |
0.7 |
12.6 |
12 |
110BYG250C |
2 |
6 |
0.9 |
20 |
0.9/1.8 |
22 |
0.8 |
16.8 |
13.5 |
110BYG260A |
2 |
4 |
/ |
/ |
0.75/1.5 |
8 |
/ |
6.84 |
6.5 |
110BYG260B |
2 |
4 |
/ |
/ |
0.75/1.5 |
12 |
/ |
9.96 |
8.4 |
110BYG350 |
3 |
3 |
2 |
13 |
0.6/1.2 |
8 |
0.2 |
5 |
6.5 |
110BYG350A |
3 |
3 |
2 |
20 |
0.6/1.2 |
12.5 |
0.4 |
8.4 |
9.5 |
110BYG350B |
3 |
3 |
2.6 |
30 |
0.6/1.2 |
18 |
0.5 |
12.6 |
12 |
110BYG350C |
3 |
3 |
3.2 |
35 |
0.6/1.2 |
22 |
0.6 |
16.8 |
13.5 |
110BYG550 |
5 |
5 |
0.37 |
10 |
0.36/0.72 |
8 |
0.25 |
5 |
6.5 |
110BYG550A |
5 |
5 |
0.37 |
10 |
0.36/0.72 |
12.5 |
0.4 |
8.4 |
9.5 |
110BYG550B |
5 |
5 |
0.73 |
15 |
0.36/0.72 |
18 |
0.5 |
12.6 |
12 |
110BYG550C |
5 |
3 |
1.3 |
20 |
0.36/0.72 |
22 |
0.6 |
16.8 |
13.5 |
110BYG5200B |
5 |
5 |
/ |
/ |
0.09/0.18 |
7 |
/ |
6.8 |
5.7 |
110BYG5200C |
5 |
5 |
/ |
/ |
0.09/0.18 |
11 |
/ |
8.24 |
7.8 |
110BYG5200D |
5 |
5 |
/ |
/ |
0.09/0.18 |
15 |
/ |
11.6 |
10 |
|
|
Dimensions |
![](../PIC/110BYG250_350_550DIM.GIF)

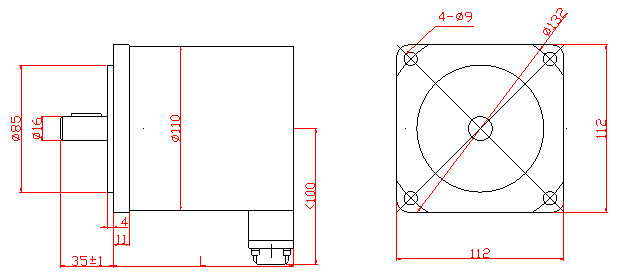

110BYG250/110BYG350/110BYG550
![](../PIC/110BYG260DIM.GIF)

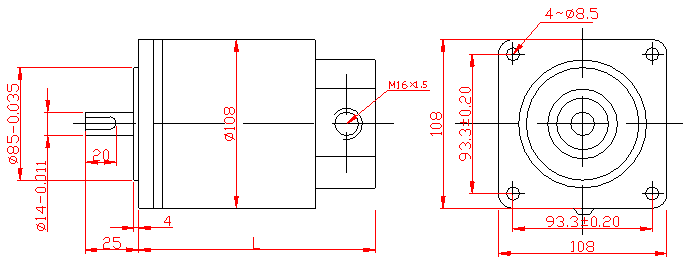

110BYG260
![](../PIC/110BYG5200DIM.GIF)

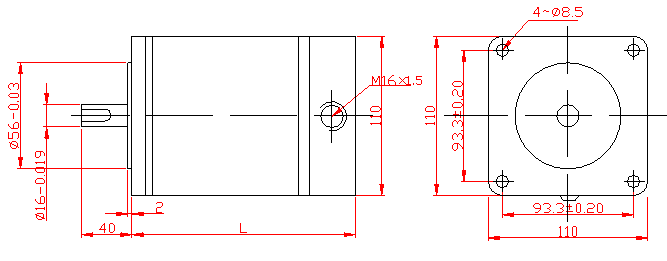

110BYG5200
|
|
Model |
L |
110BYG250 |
121 |
110BYG250A |
175 |
110BYG250B |
220 |
110BYG250C |
250 |
110BYG260A |
143 |
110BYG260B |
175 |
110BYG350 |
121 |
110BYG350A |
175 |
110BYG350B |
220 |
110BYG350C |
250 |
110BYG550 |
121 |
110BYG550A |
175 |
110BYG550B |
220 |
110BYG550C |
250 |
110BYG5200B |
145 |
110BYG5200C |
176 |
110BYG5200D |
207 |
|
|
Connection |
|
2-Phase |
3-Phase |
5-Phase |
|
Model |
Earth |
A |
A' |
B |
B' |
C |
C' |
D |
D' |
E |
E' |
Remarks |
110BYG250/110BYG260 |
5 |
1 |
2 |
3 |
4 |
|
|
|
|
|
|
5 Pins |
110BYG350 |
7 |
1 |
|
3 |
|
5 |
|
|
|
|
|
7 Pins ,△ |
110BYG550 |
|
1 |
|
2 |
|
3 |
|
4 |
|
5 |
|
5 Pins |
110BYG5200 |
6 |
1 |
|
2 |
|
3 |
|
4 |
|
5 |
|
6 lines |
|
