HB505V
5-phase hybrid
stepping driver
一、Features
-
AC40~110V Power Supply
-
Max 5A Phase Current Output
-
Robust to Motor's Parameters
-
Full/Half step Switch
-
Disable control signal (Free)
-
Holding Position when repowered
-
Static Half Current Lock
-
Isolated Input (Photo-coupler)
|

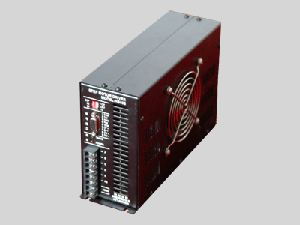

![](../PIC/hb505VN3.gif) |
二、Adapter Motors
86、90、110BYG
Series 5-Phase hybrid stepper motors
三、Inputs & Outputs
Label
|
Function
|
Note
|
CP+ |
Pulse signal + |
Optocoupler Input resistance 390 Ω, Rated 10mA, 10us minimum pulse width |
CP- |
Pulse signal - |
CW+ |
Direction signal + |
Optocoupler Input resistance 390 Ω, Rated 10mA,
ON: CW direction; OFF: CCW deirection |
CW- |
Direction signal - |
10/20 |
Full/Half Step Control
|
ON: Half Step; OFF: Full Step
|
FRE |
Disable Control
|
OFF: enable; ON: disable |
POW |
Power Indicator OC Output
|
Max 50V/20mA, when being normal,Optocoupler is ON
|
TIM |
Phase Origin Output
|
Max 50V/20mA, when being Origin, Optocoupler is ON |
COM |
Common Ground |
Common Ground of
10/20、FRE、POW、TIM |
POWER |
Power Indicator Led |
Red |
TIMING |
Phase Indicator Led |
Green |
A |
A Phase Output
|
|
B |
B Phase Output
|
|
C |
C Phase Output
|
|
D |
D Phase Output |
|
E |
E Phase Output
|
|
AC80V |
Power Supply |
Rated AC80V(AC40~110V) |
Note:
non 5V signal request corresponding increase in external resistor about
10mA Current)
四、DIP SETTING
1CP 2CP |
Pulse Mode |
1CP
1-clk,CP+/CP-: Pulse Input; CW+/CW-: Direction(Level)
2CP:
2-clk,CP+/CP-: CW Pulse ; CW+/CW-: CCW Pulse |
I/2 OFF |
Static Half Current Lock |
I/2:Static Half Current Lock
OFF:DISABLE |
10
20 |
Full/Half step Switch |
10:FULL
20:HALF |
五、Connection
![](HB505VNfiles/image002.gif)
六、Dimensions
![](HB505VNfiles/image004.gif)
|
